Type B
Ceiling Grid
Cleanroom Modular Ceiling Grid
System
|
 |
 |

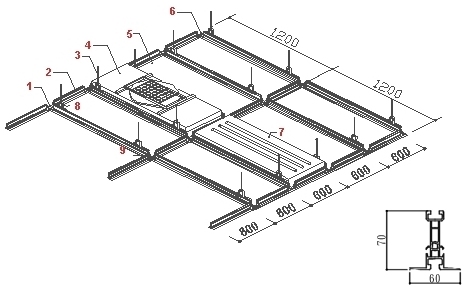

| 1. T-Connector |
| 2. T-BAR |
| 3. Bolt Hanger |
| 4. FFU |
| 5. Blank Panel |
| 6. L-Connector |
| 7. Lighting
System |
| 8. Leveling
Adjustable Hanger |
| 9. X-Connector |
|
|
| 【Specification】 |
| |
|
A.T-BAR: |
- 6063 aluminum extrusions with anodized clear finish.
- Max tensile strength=1470kg.
- Deflection=3.7mm when 300kg weight loading on 1M T-BAR.
|
|
B.Connectors: |
- Aluminum and Zinc alloyed with high-pressure machine.
- Powder Coated.
- Integrated with fire sprinkler and cable connector.
|
|
C.System compatibility: |
- Integrated with HEPA, FFU and lighting system.
- Compatible with partition system.
- Coordinated with AMHS system.
- Class 1 ~ 10000 Cleanroom.
|
|
|

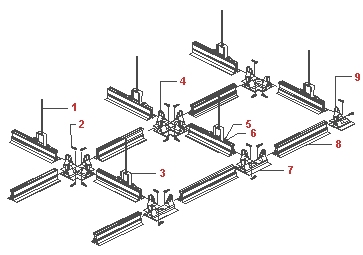

| 【Detail Drawing】 |
 |
| 1. M10 Bolt Hanger |
| 2. M8*40 Socket
Head Screw |
| 3. N001 Leveling
Adjustable Hanger |
| 4. NCGH
X-Connector |
| 5. M8T Screw |
| 6. M8 Nut |
| 7. NCGT T-Screw |
| 8. GA905 T-Bar |
| 9. NCGL
L-Connector |
|
|
 |
 |
 |
| X-Connector |
L-Connector |
T-Connector |
|
