| Modular
Bay Partition System: T-2000 |
|
 |
|
| T-2000 Modular Cleanroom Wall System is designed
for easy removal of wall panels without disturbing adjacent
panels or ceiling (non-progressive) minimizing contamination
possibilities to the cleanroom environment. The wall system is
designed for environments within the micro-electronics industry
and all supporting and related industries. |
| Specifications: | |
| A、 | Non-progressive and demountable wall system. |
| B、 | The unique frame and the members allow easy removal
and relocation of any framing member without any cutting and
drilling. |
| C、 | Flush and Studless finish. |
| D、 | Have Zero Outgassing. |
| E、 | Class 1 to Class 10,000 Cleanroom. |
| F、 | Compatible with partition doors and windows. |
| G、 | Extrusions, fasteners, trim finishing strips and
non-outgassing type gasketing necessary to maintain wall system
structural integrity and airtight installation. |
| H、 | All vertical framing, except corners, have the
capability of being placed anywhere along the wall panel without
loss of strength. |
| I、 | All Frames and battens are 6063 aluminum extrusions
with anodized clear finish. Frames and battens are designed to
fasten together tightly creating a sealed joint connection and
secure exact alignment of panels. All connections of horizontal and
vertical framing are secured to pull all joints together. A
removable enclosure cap conceals fasteners of the battens to the
post. Frames and battens are allowed wall panels to be installed or
removed easily without disturbing adjacent wall panels or ceiling. |
| J、 | The framing system is coordinated with building
structure to perform under vertical and lateral design loads and
seismic requirements. |
| K、 | Provide a deflection capable of 20mm of downward
movement. |
| L、 | Illustration of Machine Move-in 1. Move-in
Machine |
| T-2000 Panel System: | |||||||
| A、 | Single and double panels are optional selection in
T-2000 system. |
||||||
| B、 | Selection of single panel:
|
||||||
| C、 | Selection of double panels:
|
||||||
| D、 | Flush finish panel (Type 2 and Type 3, T=50mm) can
be installed in low machine move-in area with low cost and easy
installation. |
||||||
| E、 | Panel gaskets are D.I.V.A system with ZERO
outgassing. |
||||||
|
|||||||
| Doors and Window System | |
| A、 | Standard gasket door and T-2000 gasket door are
integrated in the system. |
| B、 | Standard electro partition door and T-2000 electro
partition door are integrated in the system. |
| C、 | Standard electro partition door slandered fittings:
|
| D、 | Optional electro partition door fittings:
|
| E、 | Selection of glazing:
|
| 46mm Double Antistatic Alominom Koney comb Detail Dwg | |||||||||||

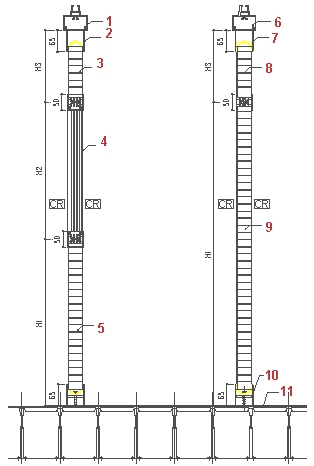

| A、 | Section view | ||||||||||
 |
1. C/G T-BAR 2. GA2004 3. 46cm Double Antistatic Aluminivm honey coarb 4. Window 5. 46cm Double Antistatic Aluminivm honey coarb 6. C/G T-BAR 7. GA2004 8. 46cm Double Antistatic Aluminivm honey coarb 9. 46cm Double Antistatic Aluminivm honey coarb 10. GA2001 11. Raised Floor |
||||||||||

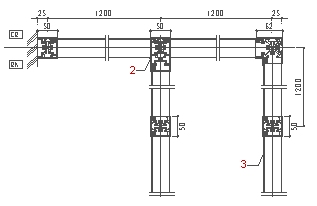

| B、 | Section View2 | ||||||||||
|
1. 46cm Double Antistatic Aluminivm/paper honey coarb 2. GA2002 3. 46cm Double Antistatic Aluminivm/paper honey coarb |
||||||||||
| 5mm Single side Antistatic Honey Comb Detail Drawing | |||||||||||
| A、 | 5mm Double Antistatic Single Honey Comb Section View | ||||||||||
 |
1. C/G T-BAR 2. GA2004 3. 5mm Antistatic Aluminivm/Paper Hong Comb 4. Window 5. GA2001 6. 5mm Antistatic Aluminivm/Paper Hong Comb 7. C/G T-BAR 8. GA2004 9. 5mm Antistatic Aluminivm/Paper Hong Comb 10. GA2001 11. 5mm Antistatic Aluminivm/Paper Hong Comb 12. Raised Floor |
||||||||||

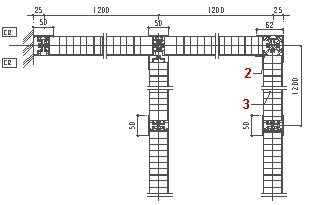

| B、 | 5mm Single Antistatic Honey Comb Section View2 | ||||||||||
|
1. 5mm Antistatic Aluminivm/Paper Hong Comb 2. GA2011 3. 5mm Antistatic Aluminivm/Paper Hong Comb |
||||||||||
